Missed Call OTP integration

Use this guide when you want OTP.ID to verify a user through a missed call. Send channel: "misscall" to POST /v3/request. OTP.ID places a call, disconnects it, and the OTP is taken from the last digits of the caller ID shown in the user’s call log. Missed Call OTP is different from WhatsApp, SMS, and Email:

There is no message body.
The user does not read an OTP from chat, SMS, or email.
The user opens their phone call log and enters the trailing digits from the number that called them.
OTP.ID returns verification.prefix and verification.otp_length so your UI can guide the user.

Flow overview

Create the Missed Call transaction

Use POST /v3/request with channel: "misscall". Missed Call does not support POST /v3/send because the OTP comes from the caller ID, not from a client-supplied code.

OTP.ID places the call

OTP.ID calls the destination number and disconnects. The user should not answer the call.

Show the prefix hint

Render verification.prefix as read-only context and create verification.otp_length digit boxes after it.

User checks the call log

Ask the user to open the call log and find the recent number that starts with the displayed prefix.

User enters the trailing digits

The user enters only the final digits of the caller ID, for example the last 4 digits.

Verify the digits

Call POST /v3/verify with the otp_id and the collected trailing digits.

Do not build a normal six-digit OTP screen for Missed Call. This channel needs a caller-ID UI that explains where the code comes from.

Create the Missed Call transaction

Request

brand is optional and usually omitted because there is no message body.

curl -X POST https://api.otp.id/v3/request \
  -H "Authorization: Bearer <api_key>" \
  -H "Content-Type: application/json" \
  -d '{
    "channel": "misscall",
    "destination": "6281234567890"
  }'

Success response

Use data.otp_id for verification. Use data.verification.prefix and data.verification.otp_length to render the UI.

{
  "success": true,
  "data": {
    "otp_id": "OTP20260811CALL000001",
    "status": "sent",
    "channel": "misscall",
    "number": "6281234567890",
    "price": 300,
    "last_balance": 99700,
    "expires_at": "2026-08-11 10:05:00",
    "verification": {
      "prefix": "628559263",
      "otp_length": 4
    }
  },
  "error": null
}

Missed Call is request-only. Do not call POST /v3/send for this channel. Trust the verification object returned by OTP.ID and do not try to infer the caller number yourself.

Verify the Missed Call OTP

If the user sees a recent call from 6285592634829, they enter only 4829.

Request

curl -X POST https://api.otp.id/v3/verify \
  -H "Authorization: Bearer <api_key>" \
  -H "Content-Type: application/json" \
  -d '{
    "otp_id": "OTP20260811CALL000001",
    "otp": "4829"
  }'

Correct digits response

{
  "success": true,
  "data": {
    "otp_id": "OTP20260811CALL000001",
    "verified": true,
    "reason": ""
  },
  "error": null
}

First wrong attempt response

The first wrong attempt returns HTTP 200 with verified: false. Let the user check the call log and try once more.

{
  "success": true,
  "data": {
    "otp_id": "OTP20260811CALL000001",
    "verified": false,
    "reason": "mismatch"
  },
  "error": null
}

Second wrong attempt and later attempts

The second wrong attempt also returns a mismatch response, then OTP.ID locks the transaction. Any later verification request for that otp_id returns HTTP 422 with TOO_MANY_ATTEMPTS.

{
  "success": false,
  "data": null,
  "error": {
    "code": "TOO_MANY_ATTEMPTS",
    "message": "Percobaan verifikasi melebihi batas"
  }
}

Recommended UI

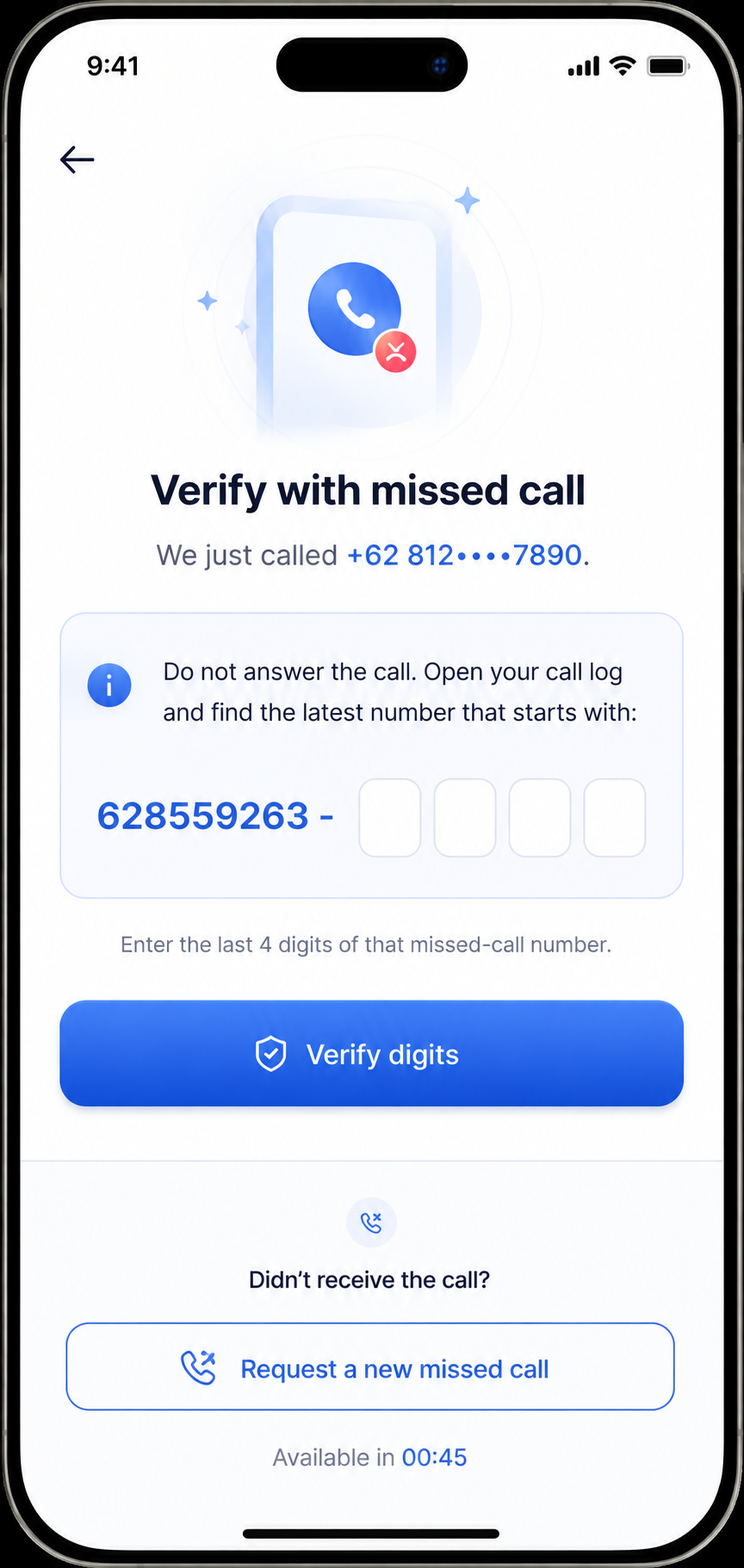

Missed Call needs a different UI from message-based OTP. The most effective screen makes the caller-ID pattern obvious. Use this reference as a recommended layout for your Missed Call verification screen: Recommended Missed Call OTP verification UI

Recommended Missed Call OTP verification UI

Verify with missed call

We just called +62 812••••7890.
Do not answer the call. Open your call log and find the latest number
that starts with:

628559263 - [  ] [  ] [  ] [  ]

Enter the last 4 digits of that missed-call number.

[ Verify digits ]

Didn't receive the call?
[ Request a new missed call ]   Available in 00:45

UI requirements

Element	Required behavior
Channel title	Use “Missed Call OTP” or “Verify with missed call” so users do not expect SMS.
Instruction copy	Tell the user not to answer the call and to check the call log.
Destination	Show the target number in masked format so the user knows which phone was called.
Prefix hint	Render `verification.prefix` as read-only text.
Digit boxes	Render exactly `verification.otp_length` boxes after the prefix. For current Missed Call OTP this is usually `4`.
Input behavior	Support numeric keyboard, auto-advance, backspace navigation, and paste.
Error copy	First mismatch: “The digits do not match. Re-check the last 4 digits in your call log.”
Lockout copy	After too many attempts: “Too many wrong attempts. Please request a new missed call.”
Retry action	Create a new OTP transaction. Do not silently reuse the previous `otp_id`.

A good mental model for the user is: “The prefix is already shown. I only need to copy the missing last digits from my call log.”

Security limits

Missed Call OTP uses a short caller-ID-derived code, so OTP.ID applies stricter limits than message-based channels.

Policy	Limit
Failed verification attempts	Maximum 2 failed attempts per `otp_id`
Destination request limit, short window	Maximum 2 Missed Call OTP requests per destination in 10 minutes
Destination request limit, long window	Maximum 4 Missed Call OTP requests per destination in 1 hour

When the destination request limit is exceeded, OTP.ID returns HTTP 429:

{
  "success": false,
  "data": null,
  "error": {
    "code": "DESTINATION_RATE_LIMITED",
    "message": "Terlalu banyak OTP ke nomor ini, coba lagi nanti"
  }
}

These limits are scoped per merchant and normalized destination number.

Integration checklist

Store the otp_id returned by /v3/request.
Store the verification.prefix and verification.otp_length with the active UI state.
Verify only the trailing digits submitted by the user.
Do not expose or reconstruct the full caller number.
Stop verification after a TOO_MANY_ATTEMPTS error and require a new transaction.
Respect DESTINATION_RATE_LIMITED; do not auto-retry in the background.
